VNC Port Numbers: 5900 Plus the Display, and How to Check Yours

VNC listens on TCP 5900 for display :0 and on 5900 plus the display number for everything else, so a desktop on :1 is on 5901 and :2 is on 5902. Only 5900 is registered with IANA for RFB, the protocol VNC speaks. You'll also run into 5800 and 5500, the web-viewer and reverse-connection ports on servers and viewers that still offer them.

Treat the offset as a starting guess. TigerVNC's Xvnc puts its listener wherever -rfbport <port> tells it, and -rfbport -1 switches TCP listening off altogether. Before you write a firewall rule or blame the network, look at what your server actually has open.

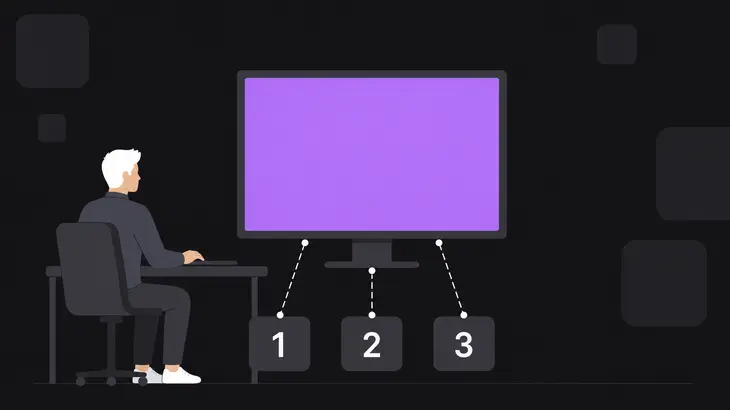

Which port goes with which display

Each desktop the server exports gets its own TCP listener, and server N listens on 5900+N the same way X servers sit on 6000+N. With one virtual desktop on :1, 5901 is the port you open and the one you dial.

Your viewer takes either form. A single colon means a display number and a double colon a raw TCP port, so with a desktop on :1 these two lines reach the same listener:

vncviewer <server-host>:1
vncviewer <server-host>::5901

Reach for the double colon whenever the port and the display have parted ways, for example after an -rfbport change.

Check which port your server is really on

The display number tells you where the port should be; the kernel tells you where it is. On a Linux server, ss -tlnp lists the listening TCP sockets with the process that owns each one:

sudo ss -tlnp | grep -i vnc

Xvnc (Xtigervnc on Debian and Ubuntu) on 0.0.0.0:5901 or [::]:5901 takes connections from anywhere your firewall lets through, because Xvnc listens on all interfaces unless told otherwise. 127.0.0.1:5901 is the one that trips people up: the server runs with -localhost, or with a localhost line in its config file, and nothing but an SSH tunnel will reach it. On Debian and Ubuntu that's where a fresh session lands: the tigervncserver wrapper stays on localhost until you set an encrypting security type. If grep comes back empty, no VNC process is listening on TCP at all: the server is stopped, or it runs with -rfbport -1.

Mac and Windows

With Screen Sharing on, a Mac listens on TCP 5900 by default. It has no ss, but lsof can filter by TCP state and puts the process name in its COMMAND column:

sudo lsof -nP -iTCP:5900 -sTCP:LISTEN

On the viewer side, the Screen Sharing app keeps a port per saved connection. Choose Window > Connections, click All Connections, then the info button next to the connection and read its Port field. Leave it at 5900 when the far end is another Mac, and change it only when you're connecting to a VNC server on another port. The display offset only comes into play when the far end exports more than one display: Apple Remote Desktop reaches a VNC server's second and third displays on 5901 and 5902, counting the primary display as 0.

In PowerShell, Get-NetTCPConnection does the job of ss and gives you a row per listener with its local address and port:

Get-NetTCPConnection -State Listen -LocalPort 5900

No line back from lsof or Get-NetTCPConnection means nothing holds 5900: the server is stopped or has moved to another port.

Move a listener to another port

TigerVNC on RHEL 9

The easy move is a new display number: the port follows it, and up to :3 you stay inside the firewalld vnc-server service. A line :3=<user> in /etc/tigervnc/vncserver.users puts that user on display :3, which is TCP 5903. Start the matching unit and check that 5903 shows up in ss:

sudo systemctl enable --now vncserver@:3
sudo ss -tlnp | grep 5903

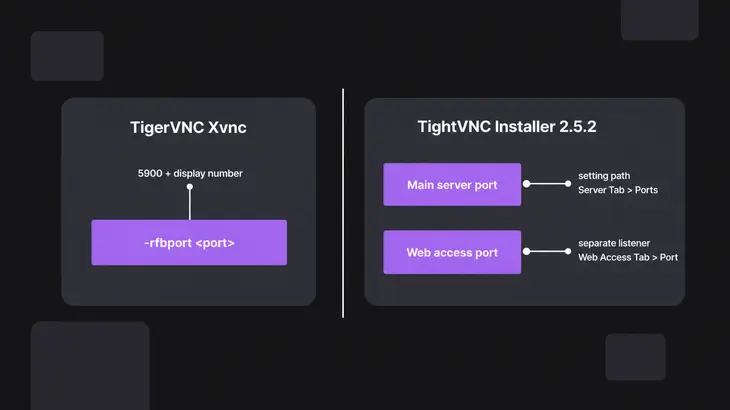

When the port mustn't follow the display, set it outright. In a session vncsession starts, Xvnc options go in the user's config file one per line, so -rfbport becomes rfbport=<port>. From TigerVNC 1.14 that file is ~/.config/tigervnc/config; older releases read ~/.vnc/config. Append the line as the session user, then restart as root and look for 5910:

echo 'rfbport=5910' >> ~/.config/tigervnc/config
sudo systemctl restart vncserver@:2
sudo ss -tlnp | grep 5910

From now on the viewer needs the port form, vncviewer <server-host>::5910. And 5910 sits outside the vnc-server firewalld service, which stops at 5903, so open it with --add-port=5910/tcp (see the firewall section below).

TightVNC for Windows

The Main server port (default 5900) sits under Server > Incoming Viewer Connections, and the Web access port (default 5800) under Server > Web Access. Changing the Web access port does nothing for VNC viewers; they always connect to the Main server port. tvnserver.exe -controlservice opens the configuration window of the service-mode server. To set the port at install time, put the SET_RFBPORT and VALUE_OF_RFBPORT properties on the msiexec line. They only touch the service-mode server:

msiexec /i <tightvnc-msi> /quiet /norestart SET_RFBPORT=1 VALUE_OF_RFBPORT=5910

RealVNC Server on Linux

Here the port is the RfbPort parameter, 5900 unless you change it, and changing it needs an Enterprise subscription. For Service Mode it goes in /root/.vnc/config.d/vncserver-x11, one Name=Value per line. Then restart the service and check that 5910 is now the one listening:

echo 'RfbPort=5910' | sudo tee -a /root/.vnc/config.d/vncserver-x11
sudo systemctl restart vncserver-x11-serviced
sudo ss -tlnp | grep 5910

Open the port, or tunnel it instead

For anything that crosses the internet or a network you don't run, keep the VNC port closed and carry the session inside SSH. Open the port directly only on a LAN you trust.

The vnc-server firewalld service opens TCP 5900 to 5903, which covers displays :0 to :3. Anything higher needs its own --add-port rule, and the reload makes both live. Each command answers success:

sudo firewall-cmd --permanent --add-service=vnc-server
sudo firewall-cmd --permanent --add-port=5904/tcp
sudo firewall-cmd --reload

Ubuntu's ufw takes the port and the source network you trust in one rule:

sudo ufw allow proto tcp from <subnet> to any port 5901

On a stock Ubuntu install ufw is disabled, so that rule does nothing until you enable the firewall, and nothing was blocking 5901 before it. Enabling ufw flushes its chains and can drop the SSH session you're typing in, so allow SSH first and check the result:

sudo ufw allow 22/tcp
sudo ufw enable
sudo ufw status

For the tunnel, ssh -L listens on a port on your machine and makes the onward connection from the server's side, so localhost in the forward means the server itself. That's why it also reaches a listener bound to 127.0.0.1:

ssh -N -L 5901:localhost:5901 <user>@<server-host>

With -N, ssh runs no remote command and holds that terminal for as long as the tunnel is up. Leave it open and start the viewer from a second terminal:

vncviewer localhost:1

Keep the local port and the viewer address in step: local 5901 is display :1 to the viewer. If 5901 is already taken on your machine, forward 5911 instead and connect to localhost::5911.

TigerVNC's viewer can build the same tunnel itself with -via. It resolves the host that follows on the gateway, so localhost there is the server:

vncviewer -via <user>@<server-host> localhost:1

With a tunnel the VNC port needs no firewall rule at all. Only SSH has to be reachable, and SSH is the only port you'd forward on a NAT router.

When the viewer and the listener disagree

Each of these has the same root: your viewer dials one port and the server listens on another, or on another address.

• A viewer pointed at 5800 never gets a desktop. That port is a web listener for a Java viewer, not RFB. Dial the RFB port instead: vncviewer <server-host>::5900, or 5900 plus the display number.
• <server-host>:1 is refused while the server is running. Someone moved the listener with -rfbport. Run sudo ss -tlnp | grep -i vnc on the server to find the real port, then connect with vncviewer <server-host>::<port>.
• Xvnc is running but ss shows no VNC listener. It runs with -rfbport -1, which turns TCP off. Drop the option or the rfbport=-1 line and restart the unit.
• It works through SSH but other hosts are refused or time out. Either the listener sits on 127.0.0.1 because of the localhost option, or the firewall drops the port. ss tells you which: 127.0.0.1:5901 is the option, 0.0.0.0:5901 points at the firewall. Open the port as above, or keep using the tunnel.
• On RHEL, displays :2 and :3 connect but :4 and up time out. The vnc-server firewalld service stops at 5903. Add the higher port with --add-port, as above.

Before you open any port, decide whether the path to the server crosses a network you don't run. If it does, forward only SSH and tunnel. If it doesn't, open exactly the port ss showed you, not a range.

FAQs

Does VNC use TCP or UDP on port 5900?

TCP. IANA lists 5900 for both TCP and UDP, but an RFB client connects to the server over TCP, so your firewall rules only need TCP.

Does moving VNC off 5900 make it safer?

Only against scanners that try the default port. An RFB server talks first: as soon as a client connects, it sends its ProtocolVersion, a 12-byte RFB xxx.yyy line, so a scan that connects to any port learns it's VNC. Ask your own listener from the server:

nc localhost 5910

The version line, such as RFB 003.008, comes back before you've typed anything. Pick the port for convenience; the password, the localhost listener and the SSH tunnel are what keep people out.
